typedef struct redisObject {
   // 类型
   unsigned type:4;
   // 对齐位
   unsigned notused:2;
   // 编码方式
   unsigned encoding:4;

   // LRU 时间（相对于 server.lruclock）
   unsigned lru:22;

   // 引用计数
   int refcount;
   // 指向对象的值
   void *ptr;

   } robj;

# types:
#define REDIS_STRING 0  // 字符串
#define REDIS_LIST 1    // 列表
#define REDIS_SET 2     // 集合
#define REDIS_ZSET 3    // 有序集
#define REDIS_HASH 4    // 哈希表


# encoding:

#define REDIS_ENCODING_RAW 0            // 编码为字符串
#define REDIS_ENCODING_INT 1            // 编码为整数
#define REDIS_ENCODING_HT 2             // 编码为哈希表
#define REDIS_ENCODING_ZIPMAP 3         // 编码为 zipmap
#define REDIS_ENCODING_LINKEDLIST 4     // 编码为双端链表
#define REDIS_ENCODING_ZIPLIST 5        // 编码为压缩列表
#define REDIS_ENCODING_INTSET 6         // 编码为整数集合
#define REDIS_ENCODING_SKIPLIST 7       // 编码为跳跃表

high performace

why have high performace:

多路复用（select or epoll: 高效处理tcp连接；
High performace DataStruct;
in-memory store ;
single thread:no locker cost

mutiple thread

why single thread: not cpu-bound, i/o bound and memory bound

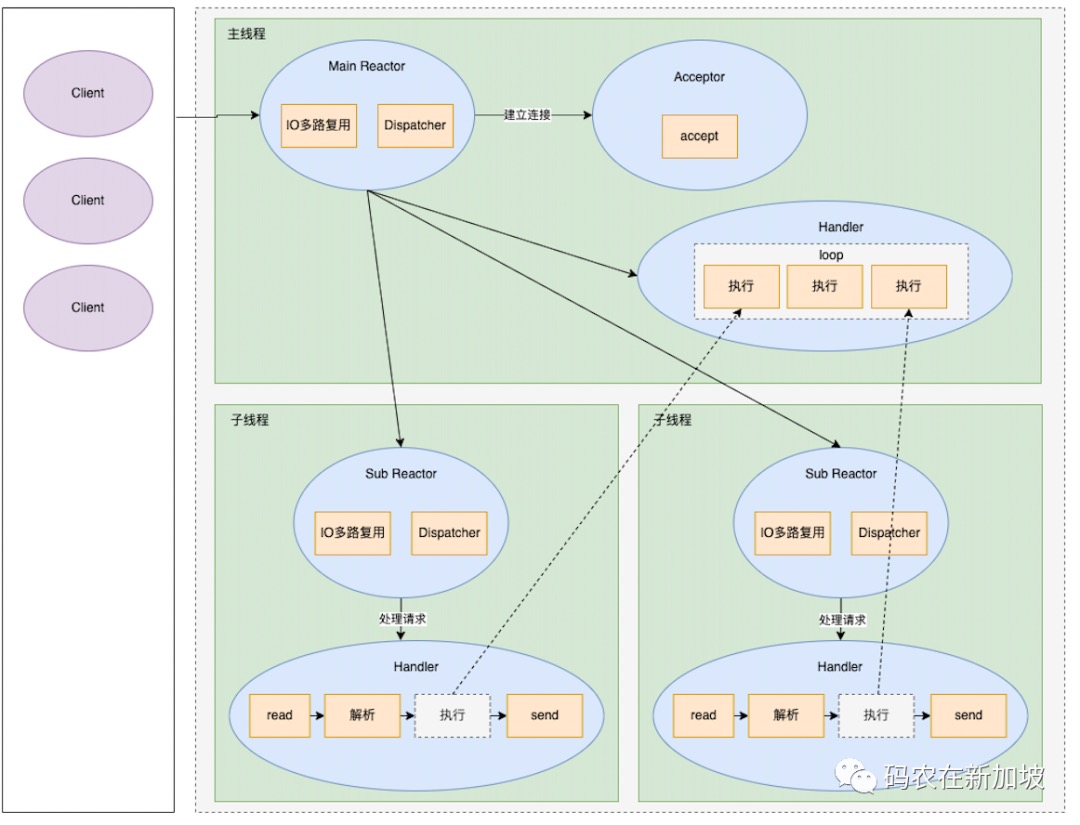

but why use mutiple thread now: improve i/o, simple version of multi reactor; child thread work: read/write socket ;

zipList

what？动态数组
feauture:
1. 元素大小可变，节省空间；

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21


area        |<---- ziplist header ---->|<----------- entries ------------->|<-end->|

size          4 bytes  4 bytes  2 bytes    ?        ?        ?        ?     1 byte
            +---------+--------+-------+--------+--------+--------+--------+-------+
component   | zlbytes | zltail | zllen | entry1 | entry2 |  ...   | entryN | zlend |
            +---------+--------+-------+--------+--------+--------+--------+-------+
                                       ^                          ^        ^
address                                |                          |        |
                                ZIPLIST_ENTRY_HEAD                |   ZIPLIST_ENTRY_END
                                                                  |
                                                         ZIPLIST_ENTRY_TAIL


area      |<---------------------- entry ----------------------->|

size        ?                  2 bit      6 bit    11 byte
          +------------------+----------+--------+---------------+
component | pre_entry_length | encoding | length | content       |
          |                  |          |        |               |
value     | ?                |    00    | 001011 | hello world   |
          +------------------+----------+--------+---------------+

域	长度/类型	域的值
zlbytes	uint32_t	整个 ziplist 占用的内存字节数，对 ziplist 进行内存重分配，或者计算末端时使用。
zltail	uint32_t	到达 ziplist 表尾节点的偏移量。通过这个偏移量，可以在不遍历整个 ziplist 的前提下，弹出表尾节点。
zllen	uint16_t	ziplist 中节点的数量。当这个值小于 UINT16_MAX （65535）时，这个值就是 ziplist 中节点的数量；当这个值等于 UINT16_MAX 时，节点的数量需要遍历整个 ziplist 才能计算得出。
entryX	?	ziplist 所保存的节点，各个节点的长度根据内容而定。
zlend	uint8_t	255 的二进制值 1111 1111 （UINT8_MAX），用于标记 ziplist 的末端。

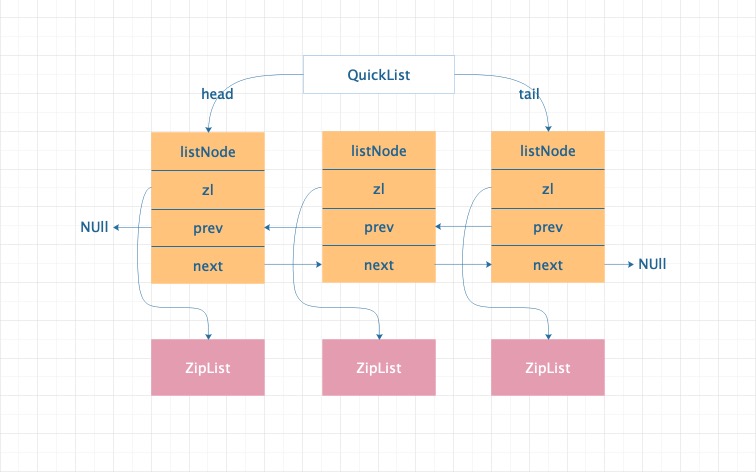

quickList

vs linker: reduce alloc time vs array: reduce moving cost

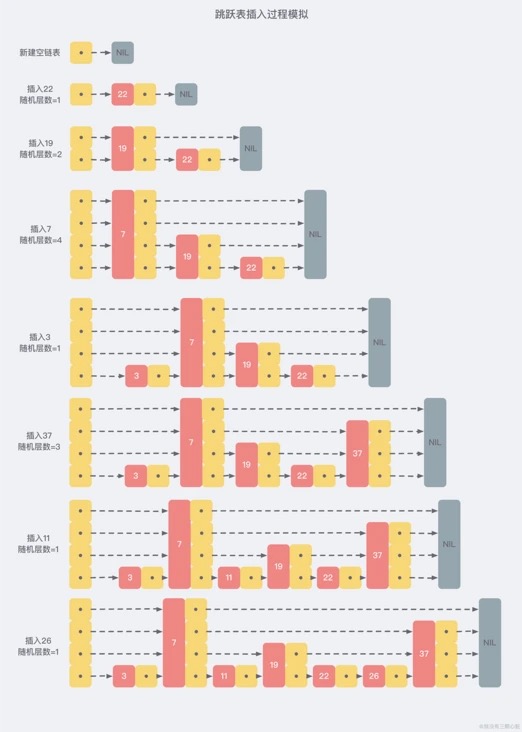

skipList

what: order linker list with mutiple next pointer

simple code:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20


struct quickListNode{
	[]nextNoeList

	....
	key
	value
}


search: currNode, key
	for _, node := range  nextNodelist:
		if key node v.key:
			currNode=node, search(currNode,key)

		if key == node.key:
			retunr node

	return  notFound;



 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32


typedef struct zskiplistNode {
         // member 对象
         robj *obj;

         // 分值
         double score;

         // 后退指针
         struct zskiplistNode *backward;

         // 层
         struct zskiplistLevel {

             // 前进指针
             struct zskiplistNode *forward;

             // 这个层跨越的节点数量
             unsigned int span;

         } level[];

} zskiplistNode;


typedef struct zskiplist {
     // 跳跃表头指针
     struct zskiplistNode *header, *tail;
     // 表中节点的数量
     unsigned long length;
     // 表中层数最大的节点的层数
     int level;
} zskiplist;

vs avl tree;
1. 范围查找更方便
2. 更简单: 不需要为了平衡而进行旋转操作

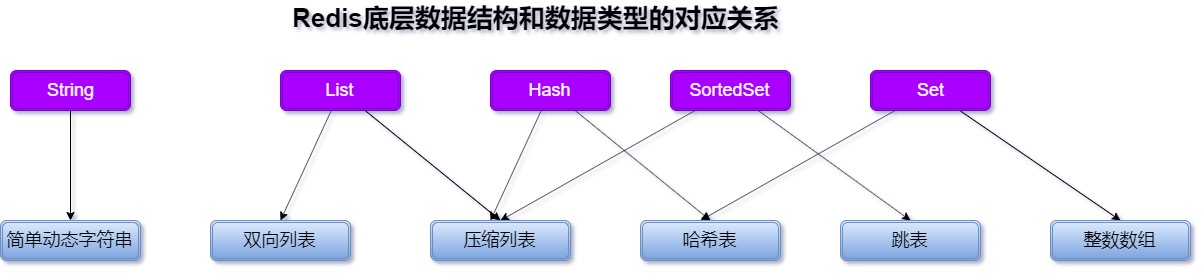

Data Types

string

sds,simple dymanic sting:

1
2
3
4
5
6


  struct sdshdr {
	  long len;
	  long free;
	  char buf[];
  };
  char greeting[6] = {'H', 'e', 'l', 'l', 'o', '\0'};

sds feature:

二进制安全: c会被\0截断；而 sds通过len能获取完整长度；
高效append: 通过预先分配free空间;减少ReAlloc次数;

sds code:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24


def sdsMakeRoomFor(sdshdr, required_len):

    # 预分配空间足够，无须再进行空间分配
    if (sdshdr.free >= required_len):
        return sdshdr

    # 计算新字符串的总长度
    newlen = sdshdr.len + required_len

    # 如果新字符串的总长度小于 SDS_MAX_PREALLOC
    # 那么为字符串分配 2 倍于所需长度的空间
    # 否则就分配所需长度加上 SDS_MAX_PREALLOC 数量的空间
    if newlen < SDS_MAX_PREALLOC:
        newlen *= 2
    else:
        newlen += SDS_MAX_PREALLOC

    # 分配内存
    newsh = zrelloc(sdshdr, sizeof(struct sdshdr)+newlen+1)

    # 更新 free 属性
    newsh.free = newlen - sdshdr.len
    # 返回
    return newsh

list

how: quickList

use case: store data sorted by added time

 1
 2
 3
 4
 5
 6
 7
 8
 9
10


LPUSH  u01  water
LPUSH  u01  milk
LPUSH  u01  tea

# [ tea,milk,water]
# left index:[0,-1];  right index:[-1, -3]

LRANG  u01  0 -1;# getall item from left to right(new to oldest)

LRNAGE a -3 -2s; # get  earliest two item

hash

structure : reidsKey field1 value1, field2 value2 ....

use case:

record some item info

1
2


hset tang age 18;
hset tang id 01;

increase field count

1
2


hincrby pv home 1;
hincrby pv detail 1;

implement:

zipList
hash

set

use case:

remove duplicated things

1
2
3


SADD visitip 1.2 1,3;;
SMEMEBERS visitip #
SCARD visitip #

how it work:

hash
整数集合

zset

what: sort set also act as a simple table:

1
2


id(primary key)  score(int)
		xxxx         xxx

use case:

rank select from rank order by score asc limit 3 offset 3 update set score=score+n where id=xxx

1
2
3
4


sadd rank  100 u1 200 u2 300 u3
zincrby rank 1 u1

zrangebyscore rank -inf +inf limit 0 3;

count number in score range if score=timestamp, slide window select count(*) from table where score>=a and score<=b

1
2
3


sadd u1  2022030401 randomID
sadd u1  2022030401  randomID
scount ui 2022030401 2022030401

how it:

zipList
skipList

cache problem

what:

cache not work
big pressure on db

types:

all: cache avalanche
partly: 1. 击穿(hotspot invalid): hot keys(one or some) invalid; 2. 渗透(cache penetration): same keys always query from db,

how:

cache avalanche:
1. before: high availablity: master-slave or clusrter architectue
2. in progress: 降级，限流
hotspot invalid:
1. expired time:
  1. don’t have expired time: configure data;
  2. set different expired time;
2. add Locker when access hot key;
cache penetration:
1. valid data;
2. bitMap or blomfilter to cache existing data;

cache consistency

what: cache data and mysql data not consitent

optianl solution:

update cache, then update db: 🚫 if update db fail, must retry
update db, then update cache: 🚫

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15


Processs A               Process B
updateDB name=a
					updateDB name=b
					updateCache name=b;
updateCache name= a



-------
// cache is nil
select a                db: a=1; cacahe: a=nil
		update db a     db: a=2; cache: a=nil
		delete cache a
set cache a            cache=1


best solutiion: update mysql, then delete cache

why: update db then update cache: will be overwrte by older process

write behind;

cache strategy;

cache aside(lazy loading): read: client-> cache->db; update: client->db, client->cache[delete];
read/write through: 由代理管理数据库和cache; client -> proxy->{cache,db}
write behind caching;
client -> cache; then after a time: cache -> write db;

strategy:
1. interval: after x sconds;
2. lazy: after updating;
problem: 一致性降低；策略:
1. 提高cache 稳定性；
2. 只从cache读取；

bigData

基于位的存储
1. bitmap
2. blomfilter:
基于概率的存储
1. hyperloglog

bitMap((bitArray)

what? array of bit
1. int value = array index;
2. bitarray[arrayIndex]=1
feature？
1. 适合存储分布均匀的整数；
2. 能还原实际值；
use case?
1. userID is autoIncrement

roaring bitmap

what? bitmap 改进版，在存储少量数据的时候节省空间
how? 空间进行分割: [1]:int16 arrary or bitArray [.]: [.] [2^16]

bloomfilter

what? bitmap(array)的应用
1. index = hashCode%bitLength
2. store multiple index;
how？ value1-> hashValue1%bitarrayLength=bitArrayIndex1; value1->hashValue2%bitarrayLength=bitArrayIndex2; if bitArray[bitArrayIndex1]=true && bitArray[bitArrayIndex2]=true; data exist
占用空间？2^32数字占用空间

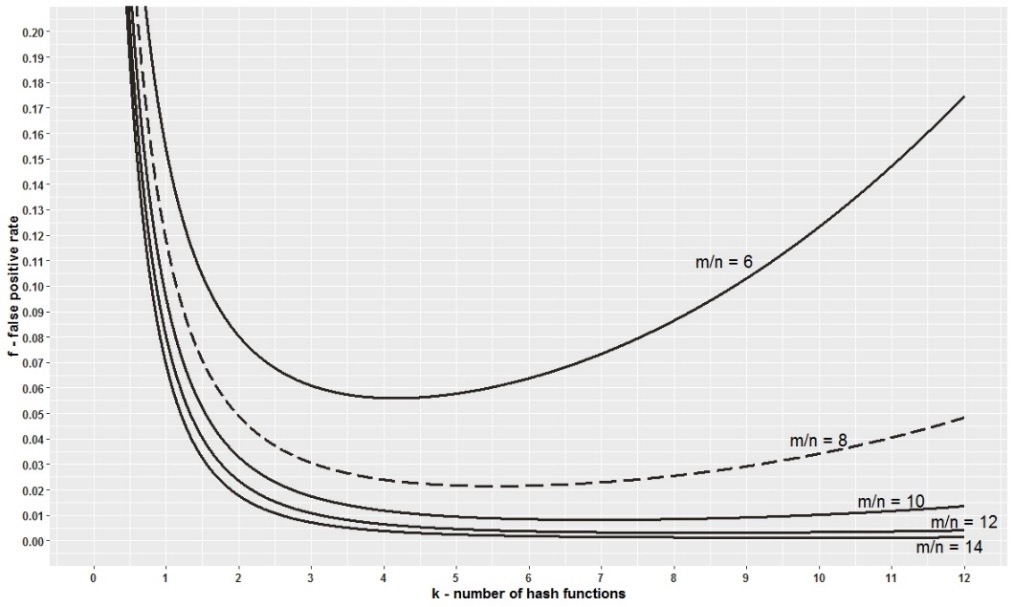

when k=4; m/n(totalBit/totalEle)= 10~20 false positive: 0.01 ~0.001
use case

hyperloglog

persistance data

types aof:append only file; command list
rdb: redis database; snapshot of memory

recover: if aof enable, load aof file frstly

aof

config:

1
2
3


appendonly yes
appendfsync everysec
appendfilename appendonly.aof

appendfsync: when flush to disk

everysec
always: every write command
no: controls by os;

how:

1
2
3
4
5


write  to buffer;
write to  os cache

if some condition:
	flush to  disk

  ![sAalHM](https://cdn.jsdelivr.net/gh/atony2099/imgs@master/20211212/sAalHM.jpg)

pros: less data loss; cons: big file and more recover tim

rewrite aof

what: merge the commands;

config:

1
2
3


// the condition of rewrite
auto-aof-rewrite-percentage 100
auto-aof-rewrite-min-size 64mb

how:

1
2
3


childProcess=fork():
	rewrite to aof file  or rdb
	append the increase command

![NDCDgZ](https://cdn.jsdelivr.net/gh/atony2099/imgs@master/20211212/NDCDgZ.jpg)

![[Pasted image 20221115052856.png]]

RDB

config:

1
2
3


save 900 1
save 300 10
save 60 10000

in 60s, 900 keys have changed

how:

1
2


bgsave:
	childProcess=fork()

 ![s5mDwy](https://cdn.jsdelivr.net/gh/atony2099/imgs@master/20211211/s5mDwy.jpg)

pros:

compact and less recover time cons:
more data loss

eviction and expire

eviction: evict data when memory reach the max memory

1

maxmemory-policy   noeviction

eviction types:

noeviction: default
volatile data
1. volatile-random:
2. volatile-ttl
3. volatile-lru
4. volatile-lfu
all keys
1. allkeys-random
2. allkey-lru
3. allkey-lfu

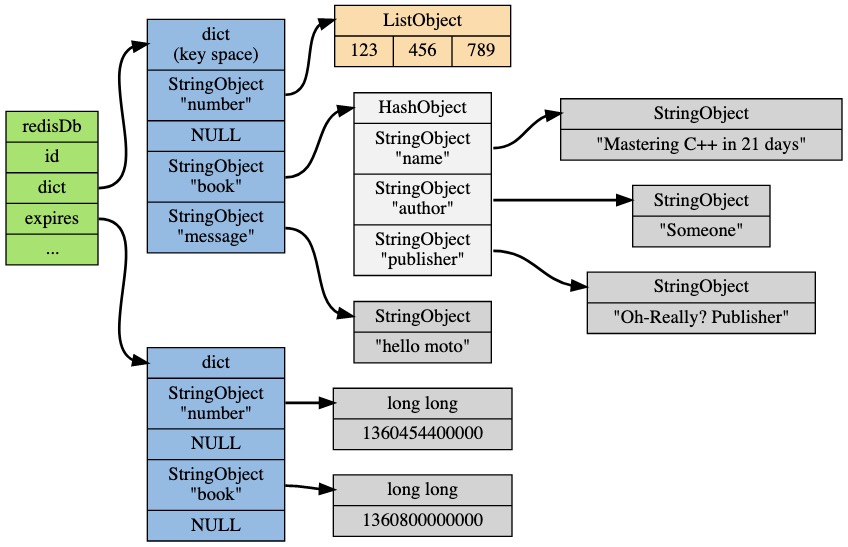

expires: remove expired keys

how: lazy-expire and auto

1
2
3
4
5
6
7
8


get(key):
	if ttl<0, del key


cron: every n  seconds:
	get random 20 keys;
	check ttl and del
	if  ttl<0's key > n and excute time < n ms: rerun again

replica

replication: 手动故障转移

1
2
3
4
5
6
7
8


// master
REPLICAOF  no one

// slave1
replicaof 192.168.1.171 6379

// slave2
replicaof  192.168.1.171 6379

sentinel: automic failover

1
2


port 26379
sentinel monitor mymaster 192.168.0.60 6379 2

how:

send heartbeat to check health
heartbeat fail:
1. client send sentinel is-master-down-by-addr: get vote > quorum, 客观下线
2. client send sentinel is-master-down-by-addr: get vote > quorum，成为leader
leader do failover
