nginx

tony2099 included in nginx

2020-11-29 256 words 2 minutes

Contents

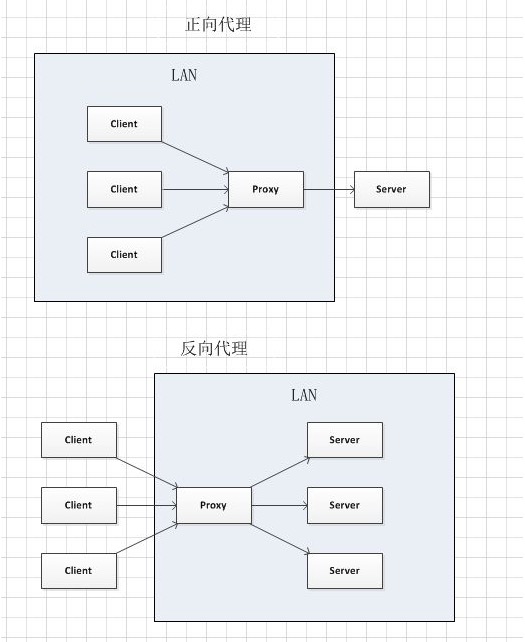

1. forward proxy vs reverserd proxy

they both forward client request; act as an intermediary for client and server

the basic defination:

forward proxy: autual client is transparent for server
1. vpn;
2. cache server
reverser proxy: acutal server is transparent for client;
1. nginx
2. gateway

2. nginx use case

static server
reversed proxy

为什么不适合做网关

网关除了要服务转发外，还需要包含限流，鉴权等其他一些功能；需要进一步开发；

nginx architecture

master-work; master: manager worker work: handle request

configue

1. nginx configure basic

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31




# events s
events {


}

# http modules
http{
    //**作用于所有server**
   include    /etc/nginx/proxy.conf;
   include    /etc/nginx/fastcgi.conf;
   index    index.html index.htm index.php;

    server1{
        //代表一个完整的服务(对应一个域名和端口(通常是80))
         server_name example.com www.example.com;
    }

    server2{
        // 默认值，处理ip直接访问
        server_name ""

    }

    server 3{
       listen       80  default_server;
       server_name  _; //匹配所有域
    }
}

server configure

3. gzip compress

1
2
3
4
5
6
7


http {

  gzip on;
  gzip_buffers     4 8k; # the number and size  of buffers  used to compress the response
  gzip_comp_level 6;
 gzip_types       text/plain application/x-javascript text/css application/xml application/javascript application/json;
}

2. configure statics

1
2
3
4
5
6
7


server {
    root /www/data/blog;
    server_name 8.131.105.149;
    location / {

    }
}

3. proxy cache

1
2
3
4
5
6
7


proxy_cache_path  /data/nginx_cache levels=1:2 keys_zone=proxycache:60m max_size=120m inactive=2h use_temp_path=off;
proxy_cache_key    $host$request_uri;
proxy_cache proxycache;


 add_header    Cache-Control  public,max-age=3600;
 proxy_ignore_headers  Cache-Control;

proxy_cache_path:
1. keys_zone: create a shared memory zone for storing the cache key
2. max_size: the cache max size
3. how long an item can remain in the cache without being accessed.
