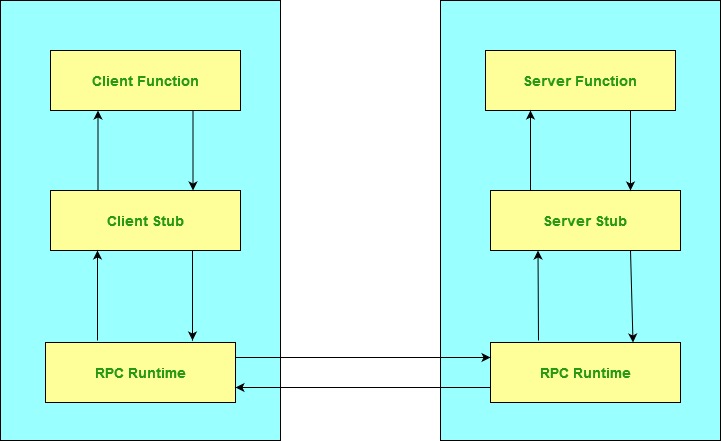

what: remote procedure call, used for communicate. between process

basic component:

1. serilization
2. transport: tcp

rpc框架比较:

use

what: 依赖于protoc 文件；

server: grpc server, handler client: grpc connect

code:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

// server

// 1. rpc server
grpcSrv = grpc.NewServer();
grpcSrv.Listen(tcpListen);


// 2. addRpcServer
potocol.register(grpcSrv , handlerSrv)


// client
conn = grpc.dial()

client  = proto.newClientWithConn(conn)
client.callSomeFunc

grpc.methods:

1
2
3
4

methodsTable:
	server: ....
	rpc methodname: ...
	handler: ....

restful vs rpc

same:

1. client-side
2. based on http, tcp

differ:

1. function vs resouce: 抽象方式

   1. rpc: action(function)-oriented: operatioon= call local funtion 处理各种类型操作；
   2. http: resouce-oriented: operaiton= curd resource, 不擅长处理非crud操作

2. data-format:

   1. rpc: binaryformat
   2. rest: text-format

3. advanced：

   1. 服务注册发现
   2. 负载均衡
   3. streaming

why use rpc in microserve:

1. fast: binary foramt, less size.
2. more safe: schema, type safety
3. more advanced:
   1. code generation
   2. service discovery
   3. load balance
   4. streaming

protobuf

what:

1. one of date format，like json,xml
2. 跨语言

vs json

differ:

1. encode:
   1. text-eoncode(serilazion)
   2. binray-econde : lesss size
2. type safety: 基于 schema实现type check, avoid unexpected behavior

how

1. variant int
2. Tag value to represent key value.

variant int

what: 使用最高位表示是否有更多byte 1: continue 0: end

pros: use less space when int is small;

example: 1

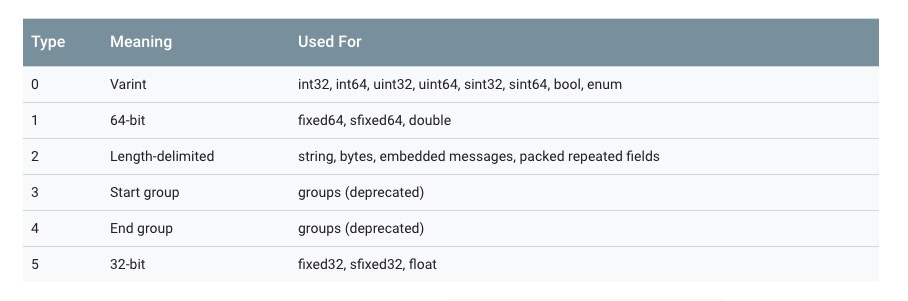

tag value

how： tagnumber -> key, length(optional), value

1
2
3
4
5
6
7

message Person {
required string user_name        = 1;
optional int64  favourite_number = 2;
repeated string interests        = 3;
}

person.name=martion -> 01  02 06 martin

the used of tag number： identify the key

can grpc number duplicate: no, key is represent in a unique key number during encoding and decoding

protobuf

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

syntax = "proto3";

package hello_123;



option go_package ="xgit.molica.com.cn/backend/hello;hello";



service HelloWorldService {

rpc SayHello(HelloWorldRequest) returns (HelloWorldResponse) {}

}



message HelloWorldRequest {}



message HelloWorldResponse {

string message = 1;

}

package: use in internal space,

how to use it

define

structure package: namespace service: a set of methods

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

package aa


message xx {

}

service  xxx  {

}

convention:

1. PascalCase for message name:
2. snake case name file file
3. PascalCase for service name and method

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

message HelloReq {
	string song_name = 1;
}



message  HelloRes  {
	string  age int32 = 1;
}


service Greeter {
	rpc  SayHello (HelloReq) returns (HelloRes)
}

command

plugins:

1. protoc-gen-go: how to encode/decode;
2. protoc-gen-go-grpc: grpc client/server

command:

simple:

1

protoc  --go_out   xx.proto

1
2
3
4

protoc --go_out=paths=source_relative:.  --go-grpc_out=paths=source_relative:. -Iapi  hello/v1/hello.proto

protoc --proto_path=api  --go_out=. --go_opt=paths=source_relative    --go-grpc_out=. \
--go-grpc_opt=paths=source_relative  hello/v1/hello.proto

protoc –go_out=paths=source_relative:api api/hello/hello.proto

arguments:

–go_out=PATH: output direcotry; –go_out=pahts=source_relative/import:. the output directory is:

1. import: import directroy
2. source_relative: the proto file relative directory

grpc and http server

server: bind grpc service and protocServer

1
2
3
4
5
6

grpcSer := grpc.NewServer();

helloProtco.Register(grpcSer, protocServer)

grpcServer.Serve(tcpConnect)

client: bind serverClient

1
2
3

serverClient.Register(tcpConnect)

load balancer

default methods for grpc

how:

1. resolver: 解析URL, URL -> ip
2. balancer: pick from subConnect

balance strategy:
1. round-robin 2. pick-first 3. custom

resolver:

1
2
3

for  addrList :=  addressChannl{
	updateConnectionList(addlist)
}

balancer:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

func Build(){
	var subConns []balancer.SubConn
	for sc := range info.ReadySCs {
		subConns = append(scs, sc)
	}
}

pickNext(){
	p.next = (p.next + 1) % len(subConns)
}

grpc advanced feature

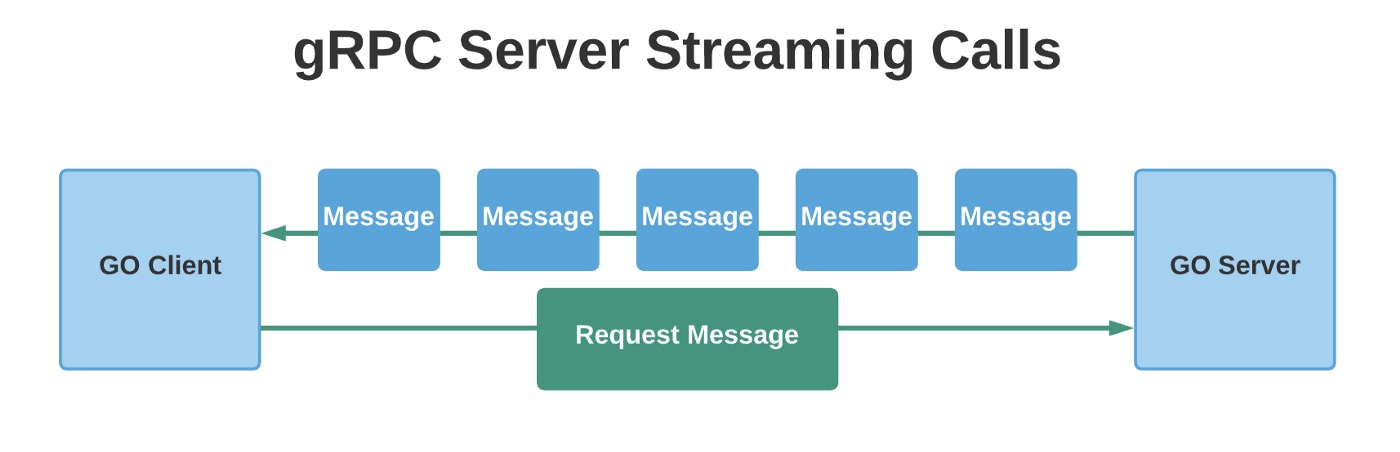

stream;

1. what?

   send: —> [request message]; receive: <- [reponse message];

   send: [requestMsg1, reqMsg2]; response: [responseMsg, responMsg];

send mutiple reponse request/reponse at same time;

send:

1
2
3
4
5
6
7

func (s *server) SayHello1(in *pb.HelloRequest, gs pb.Greeter_SayHello1Server) error {
	name := in.Name
	for i := 0; i < 100; i++ {
		gs.Send(&pb.HelloReply{Message: "Hello " + name + strconv.Itoa(i)})
	}
	return nil
}

receive:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

for {
	reply, err := stream.Recv()
	if err == io.EOF {
		break
	}
	if err != nil {
		log.Printf("failed to recv: %v", err)
	}
	log.Printf("Greeting: %s", reply.Message)
}

2. 本质是什么？ 将一个大的请求/响应拆分成更小的请求/响应；

3. use case;

   1. 处理大量报表数据:报表数据；

grpc serverr

1. use protoc to generate the necesssary file
2. generate the server and client;

server:

1
2
3
4

grpc Server = grpc server

grpcSev.listen(tcp);
rpcHandler.register(grpcSev)

client:
